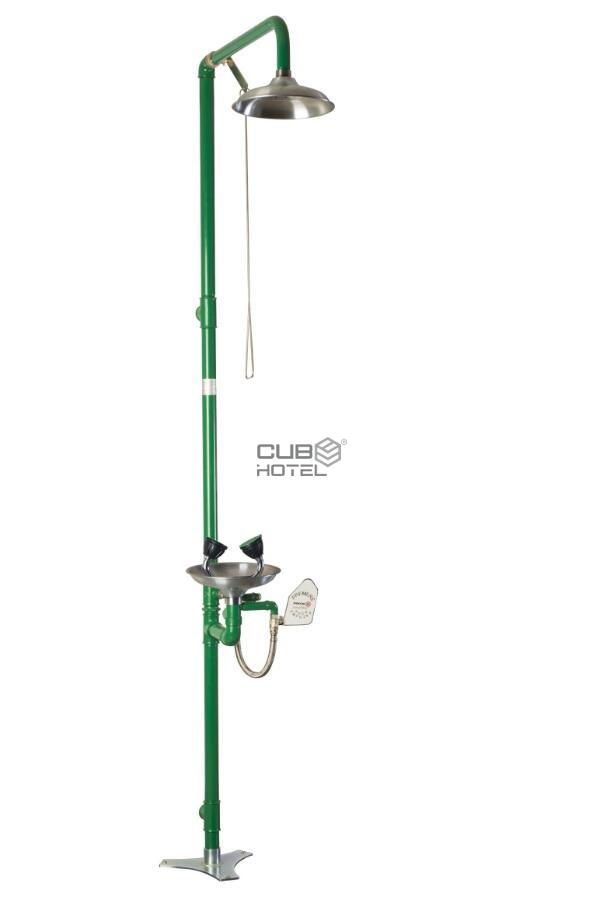

Emergency Shower and Eye Wash 700SS Stainless Steel

• Emergency shower and eyewash combination
• Shower operation: rigid strap with triangular handle
• Eyewash operation: manual lever on the side
• Material: galvanized steel, brass fittings, stainless steel shower head and paddle
• Finish: RAL 6029 green epoxy paint.
• 1/2 “ water inlet thread
• Water outlet thread 1 + 1/4 ”
• High flow at low pressure with full port valve.
• Instant automatic opening and manual closing with automatic activation via a lever on the side.
• Eye wash flow: 14 l/min ± 10%.
• Shower flow: 120 liters / min.
• Supply temperature between 15º and 35º.
• Suitable for industries, workshops, laboratories and in general where there is a risk of damage from fire, acids, reagents, petroleum products, radioactive materials or any other element contaminating personnel.
• In accordance with European directive 93/42 / EEC

BOCCHI emergency showers fully comply with the specifications required by specifications required by regulations:

• EN 15154-1 standards relating to shower devices for the body connected to the water network and according to which the minimum flow rate of the sprinkler must be at least 100 l / min. Emergency showers have a flow rate of more than 120 l / min at 0.3 MPa.
• EN 15154-2 standards for eyewash units connected to the water network, according to which the minimum flow rate for eyewash must be at least 6 l / min. Eye drops have a flow rate of more than 14 l / min at 0.3 MPa
• UNI9608 Regulations governing the use of emergency showers and eye drops.
• UNI10271 Regulations governing the use of portable eye/face washers.
• UNI7546 / 2 UNI7546 / 3 UNI7546 / 4 requiring the presence of a sign for the shower and another for the emergency eyewash.
• ANSI Z358.1-2004 (American National Standard Institute).
