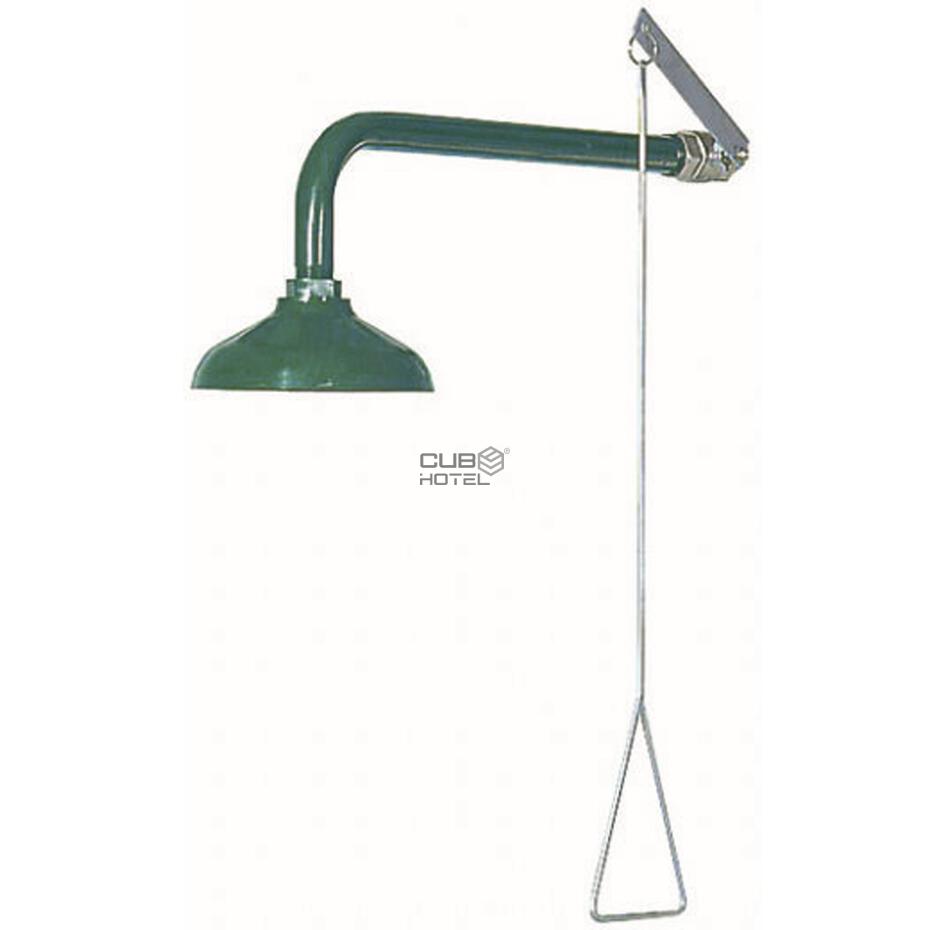

Emergency Shower, Horizontal, With Manual

• Horizontal emergency shower for wall mounting.
• Full bore valve, the opening and closing instant automatic manual.
• Rigid rod with triangular handle.
• Spray green polypropylene.
• Constructed from galvanized steel coated with epoxy paint.
• Brass connecting pieces.
• Required minimum flow: 6 liters / minute at 2 bar.
• Shower flow: 120 liters / min at 3 bar.
• Water inlet: screw 1-1 / 4 ''.

BOCCHI emergency showers, they satisfy the specifications required by the
regulations:

• EN 15154-1. The respective standards for shower devices connected to the water system.
• EN15154-2. Respective standards for connected eye wash units to the water network.
• UNI9608, UNI10271 and DIN 12899 PART 2. Regulatory standards for eye-wash units and emergency showers.
• ANSI Z358.1-2004 (American National Standard Institute) regulatory standard of eyewash units and emergency showers.
• According to regulations the minimum eyewash flow should be 6 liters /minute and the emergency shower of 100 liters / minute: DILUVIO eye-wash flow more than 14 l/min and showers flow more than 120 l/min at 0,3 MPa.
